Данные о продукции
| Бринелль | HBW 1/10; HBW 2.5/6.25; HBW 5/25; HBW 10/100; HBW 1/30; HBW 2.5/15.625; HBW 5/62.5; HBW 2.5/31.25; HBW 5/125; HBW 2.5/62.5; HBW 2.5/187.5 |
| Измерение глубины по Бринеллю | HBD 2.5/62.5; HBD 2.5/187.5; HBD 5/250 |
| Измерение глубины по Виккерсу | HVD 30; HVD 50 |
| Поверхностный Роквелл | HR15N; HR15TW; HR15WW; HR15XW; HR15YW; HR30N; HR30TW; HR30WW; HR30XW; HR30YW; HR45N; HR45TW; HR45WW; HR45XW; HR45YW |
| Применимые методы испытаний и стандарты | Rockwell, Rockwell Superficial (EN ISO 6508, ASTM E-18, JIS B7726); Ball indentation test on plastic materials (EN ISO 2039-1); Plastic test (EN ISO 2039-2, ASTM D785 A, JIS K7202-2); Rockwell Alpha test (ASTM D785 B); Brinell, Indentation only (EN ISO 6506, ASTM E-10, JIS B7724); HBT (VDE/VDI 2616 - non standard); HVT (VDE/VDI 2616 - non standard) |

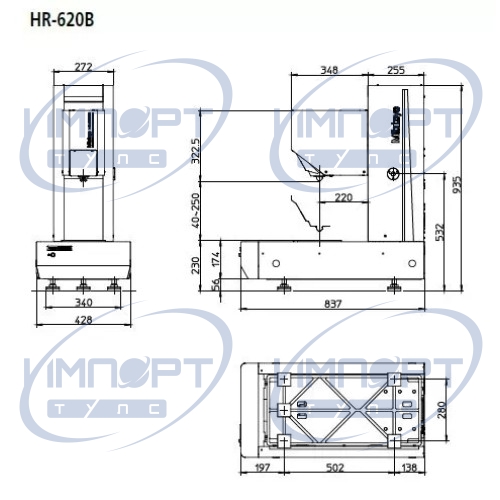

| Размеры основного блока | External dimensions 428(W) × 837(D) × 935(H) mm; External dimensions display unit 191(W) × 71(D) × 147(H) mm (optional); Mass main unit: 205kg; Power supply AC100V, 120V, 220V, 240V Auto-selection; Power cord not included; Operation temperature: 5-40 °C; Humidity: 55-65% (without dew condensation) |
| Роквелл | HRA; HRF; HRH; HRL; HRR; HRD; HRB; HRE; HRM; HRS; HRC; HRG; HRK; HRP; HRV |
| Тест на пластичность при вдавливании шарика | HB 49N; HB 132N; HB 358N; HB 961N |
| Тест пластика по Роквеллу | HRE; HRL; HRR; HRK; HRM |
| Функциональность | 5,7" touch screen display (optional); mm (optional); mm/inch (optional); AVPAK software control (optional); HR unit resolution: 0,01; Test force range 1-250kg, 9,8-2450N; Test force switching by software; Real time test force control; Fully automatic test cycle; Motorized test force generation; Motorized Z-Axis; LED workroom illumination; RS-232C Digimatic, USB2.0 interface; USB stick data transfer (optional); Jominy-test capability*; Footswitch connection for serial test |
| Функциональные размеры | Contact unit contact area: ** 18x4mm; Minimum inside radius of workpiece: 25mm; Minimum inside Ø of workpiece: 400mm; Minimum outside radius of workpiece: 20mm; Basic test surface 200 x 200mm ***; Anvil adaption Ø 10mm / Ø 19mm (optional); Max. specimen height (reduced by addiing accessories and X-axis): 250mm; X-axis option (optional); Z-axis height (Max. specimen heigh)t: 250mm; Z-axis height with X-axis added (Max. specimen height): 165mm; Y-axis range: 160mm; Throat depth: 220mm; Max. specimen weight: 100kg; Max. specimen weight with X-axis mounted: 50kg; Max. speed Y: 48mm; Max. speed Z: 10mm/sec |
